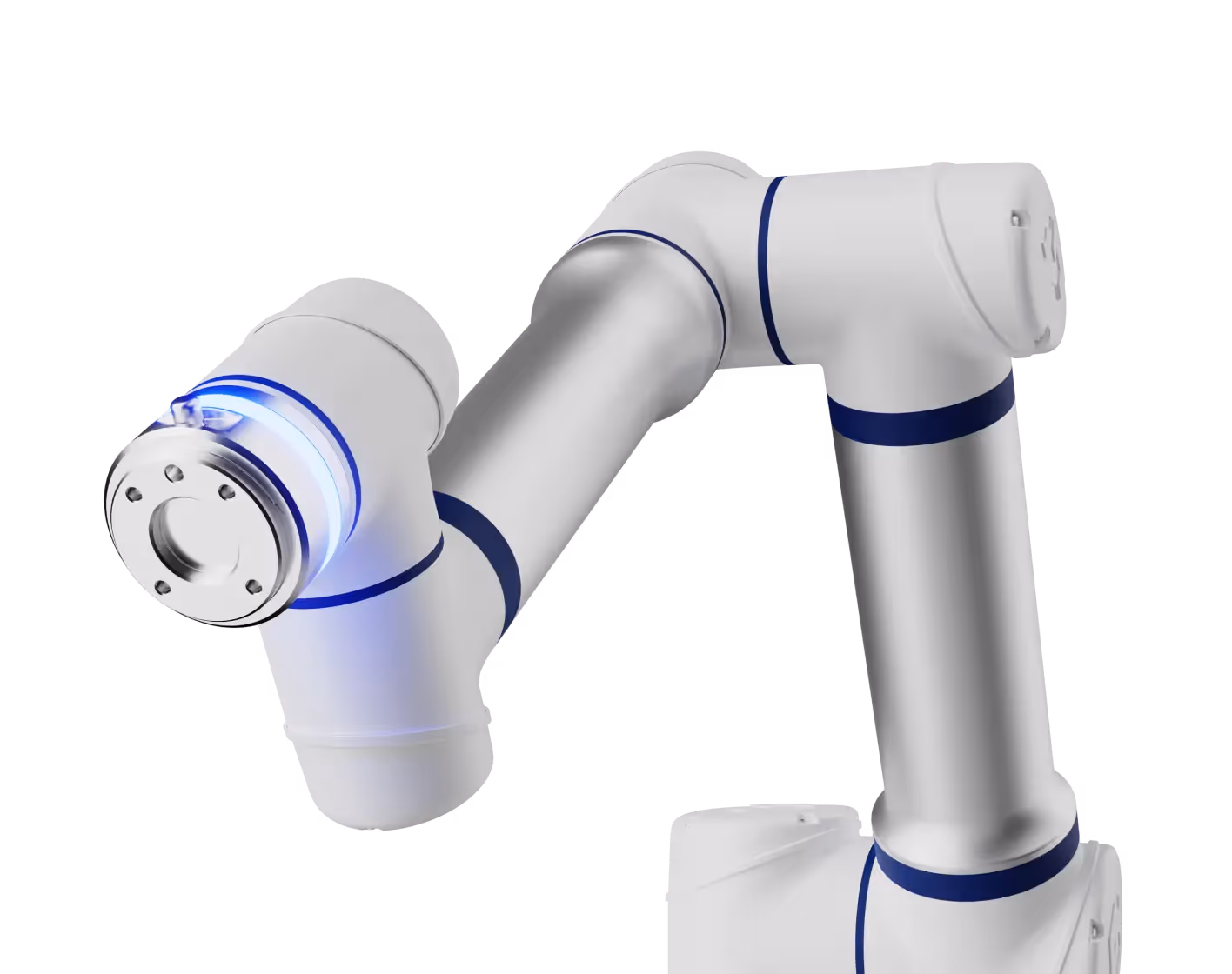

CS Series

The top-of-the-line cobot for advanced automation needs

COBOTS RANGECS

CS Series

STARRING IN COBOT WORLD

Highlights

The CS series stands out for several top features, including but not limited to:
25 kg
max capacity
The high 25kg payload capacity, combined with a max reach up to 1800mm, makes the CS Series the perfect choice for heavy-duty tasks.
3A/5A
dual connector
DI/DO adjustable 8 pin connector up to 3A. 4 pin 5A connector (CS620/CS625 only)
IP65/IP68
protection rating
for smooth anduninterrupted operations even in challenging conditions. RoHS compliant.
3.9 m/s
max tool speed
fpr rapid operations and reduced downtime
FLEXIBLE AND EXPANDABLE UI

Advanced Software Interface

Intuitive graphical UI supporting the development of custom plugins. Highly flexible SDK for maximum expandability. Embedded simulation platform and palletizing wizard. On-site and remote control and programming of the cobot.
Supported programming languages include:
Supported devices:
Laptop
Tablet
Phone
Pendant
FLEXIBLE AND EXPANDABLE

Boost your production line

The CS Series brings flexibility, safety, speed and uptime to your workshop.

Perform the heaviest collaborative tasks with a payload of 25 kg and a 3A/5A tool IO.

The compact controller with 24 DI/DO offers high openness, and the optional teach pendant with 3-modes enable key ensures enhanced safety.
ISO 13849
ISO 10218
CE-MD
ISO-5 Cleanroom
RoHS
UL

CE

KCs
SEMI S2
SUITABLE FOR ALL ENVIRONMENTS

IP65/IP68 protection rating

With a standard IP65 protection rating upgradeable to IP68, an ISO-5 Cleanroom and an operating temperature ranging from -10° to 50°C, the CS series cobot can operate smoothly in both harsh environments and those requiring high levels of hygiene (eg. pharma and labs)
The IP68 protection rating makes the CS series immune to water jets and immersion up to 1 meter.

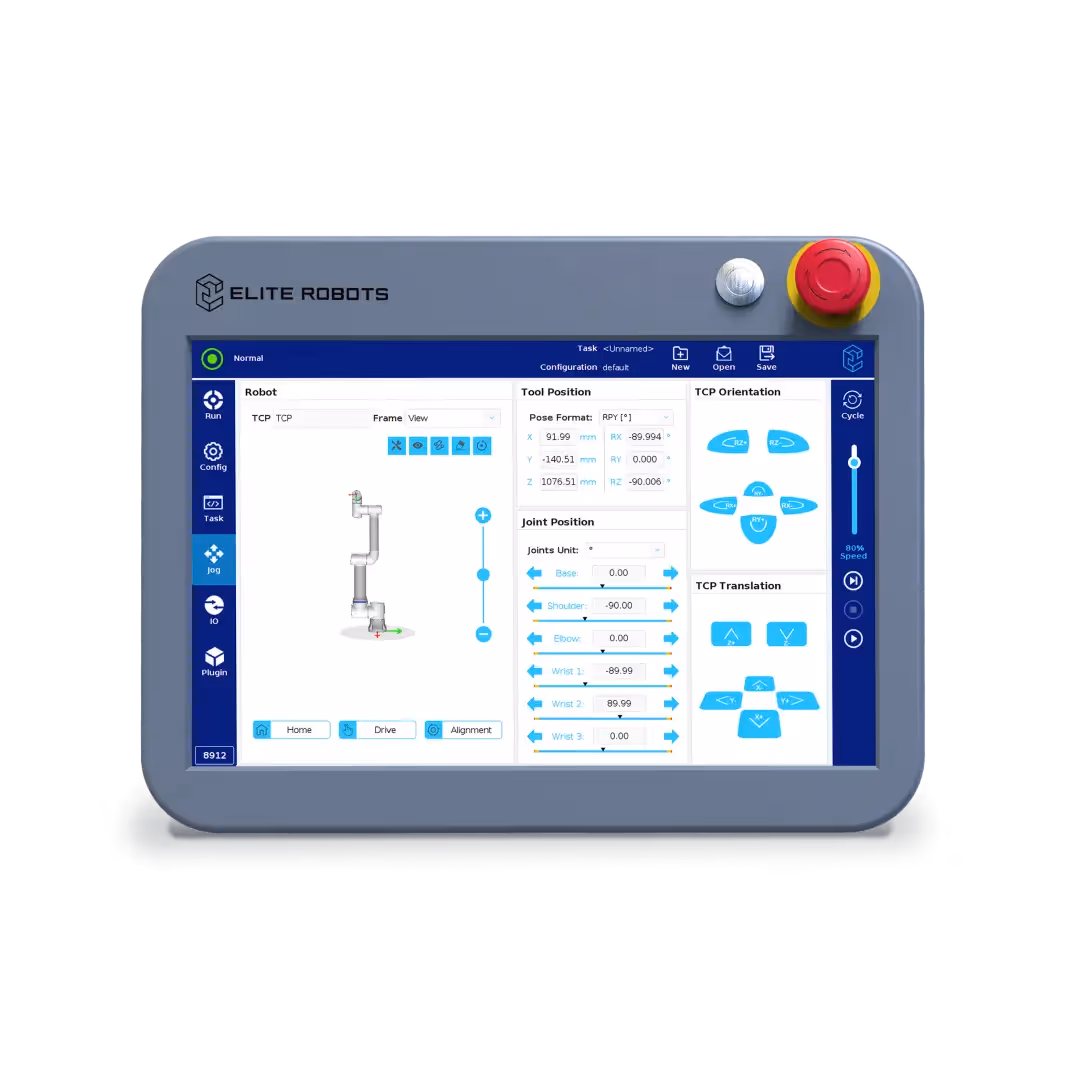

Standard full-touch ERP400 teach pendant (301 x 232 x 54mm size, 1.7kg weight)

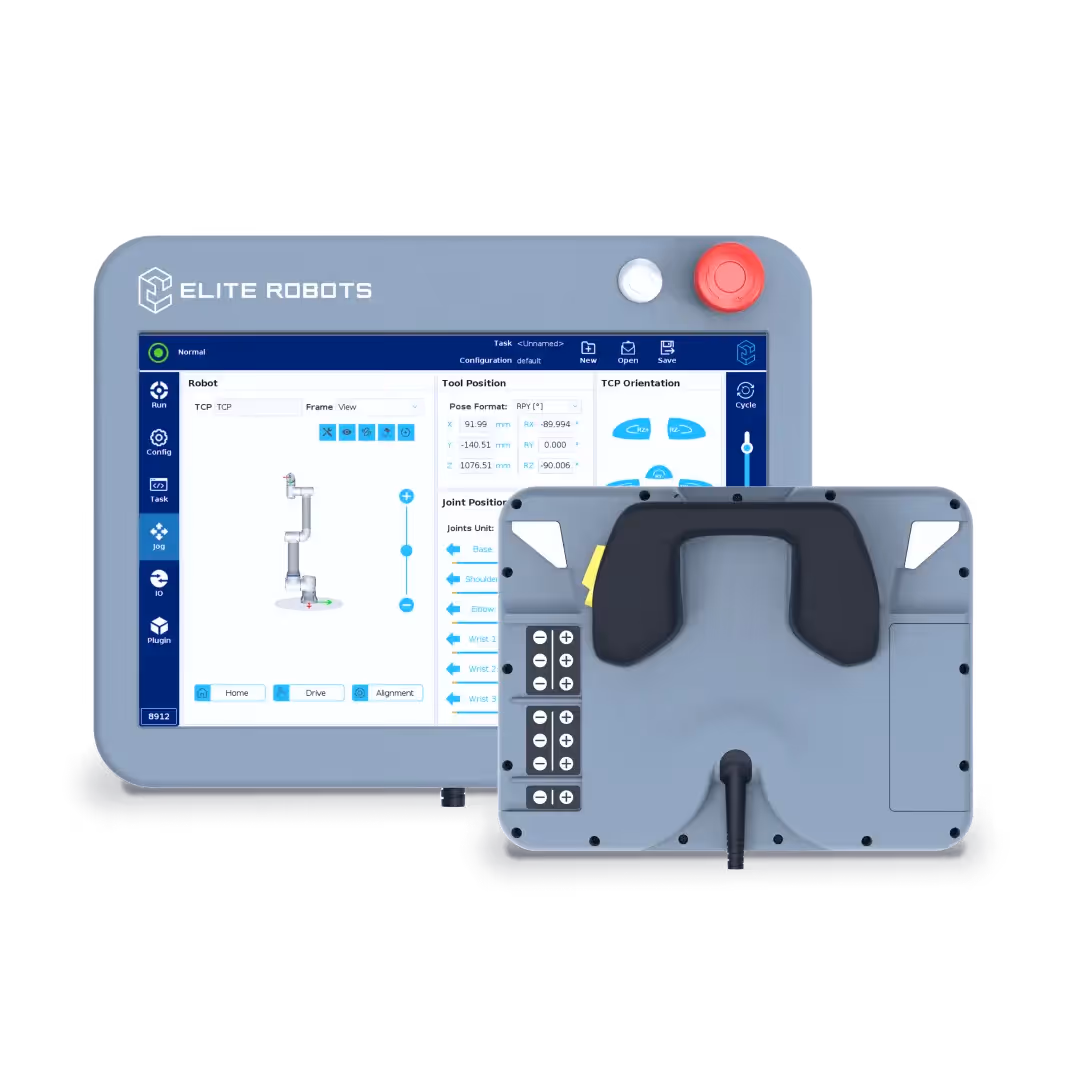

Optional ERP400S teach pendant (301 x 232 x 105mm size, 1.8kg weight) for all payloads of CS cobots with 3-mode enable key, jogging and function keys.

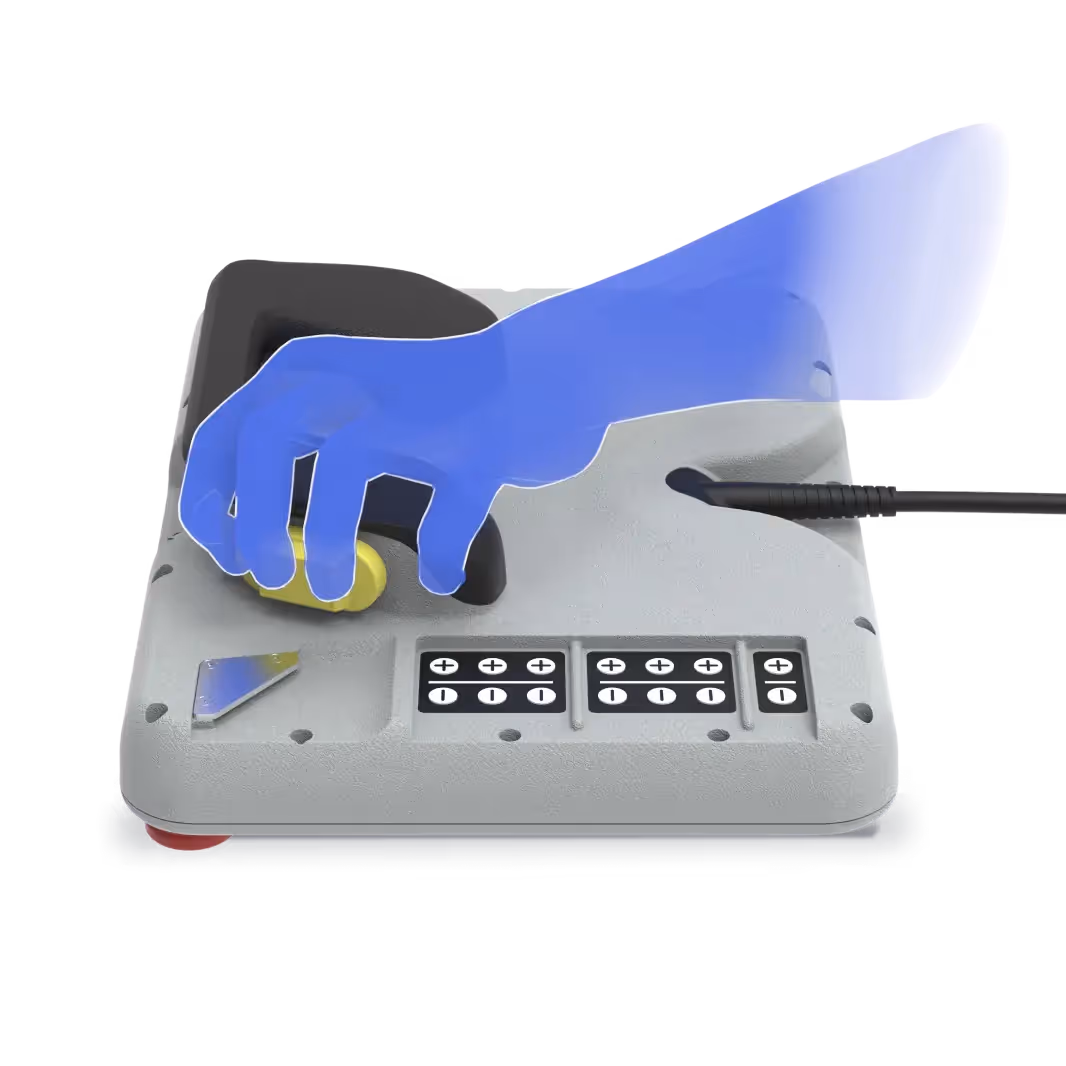

The rear 3-mode enable key (commonly referred to as the "dead man's key") provides enhanced safety.
FULL-TOUCH PENDANT WITH OPTIONAL 3-MODES ENABLE KEY

Productivity and Safety at Your Fingertips

IP54-rated teach pendant containing Elite Robots proprietary software, with a 12.1" full-touch  screen for convenient on-site operations. Optional version with 3-modes enable key for enhanced safety.

GREATER OPENNESS

Highly Expandable Controller

Standard AC controller with 24 DI / 24 DO (8 config.) and 4 High-speed digital input. Ethernet/IP and Profinet slave with Modbus TCP/RTU interface. Optional OEM AC/DC controller for integrators, OEM partners and users who want to create their own custom design.

Available protocols include:

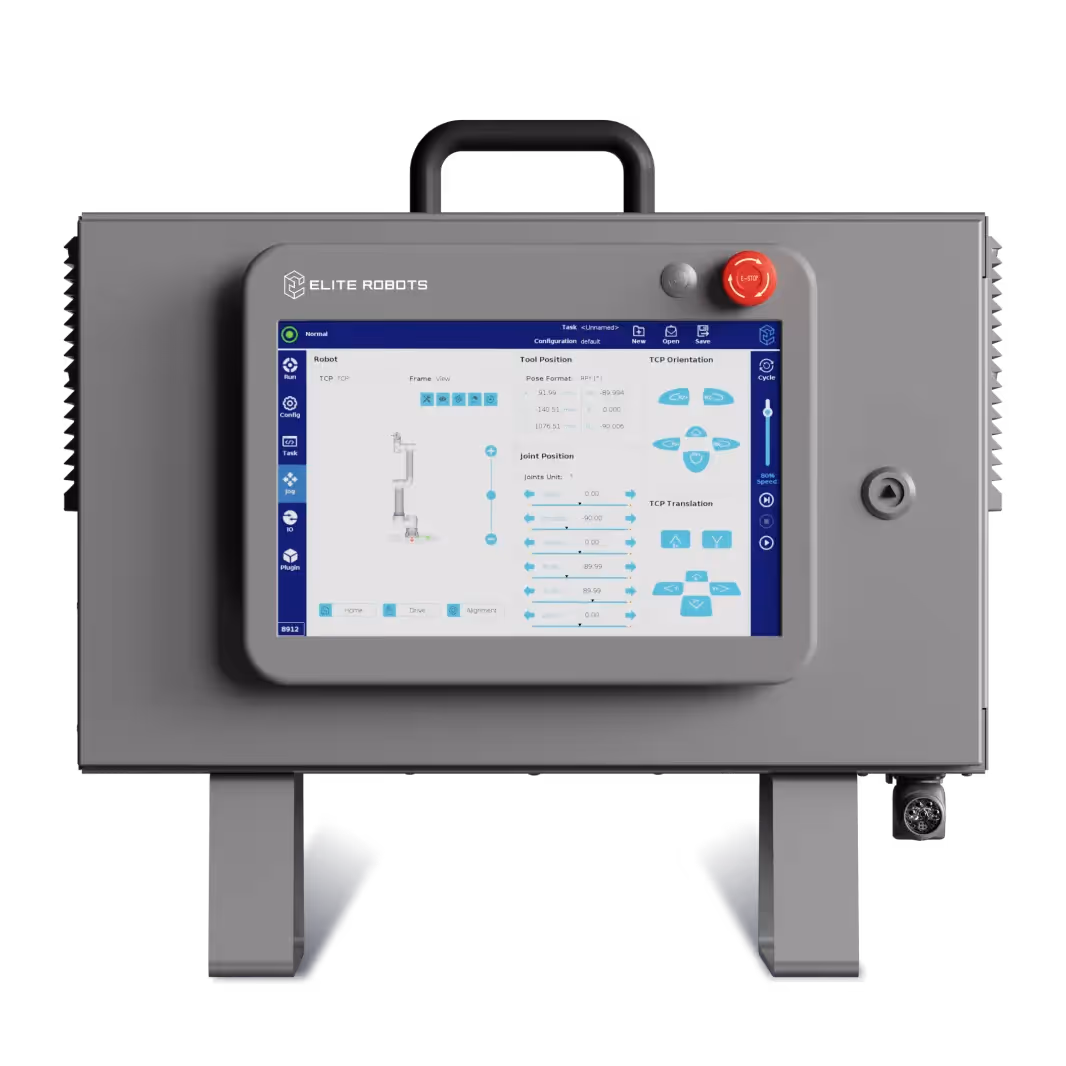

The controller integrates a holder to attach the TP for optimal storage

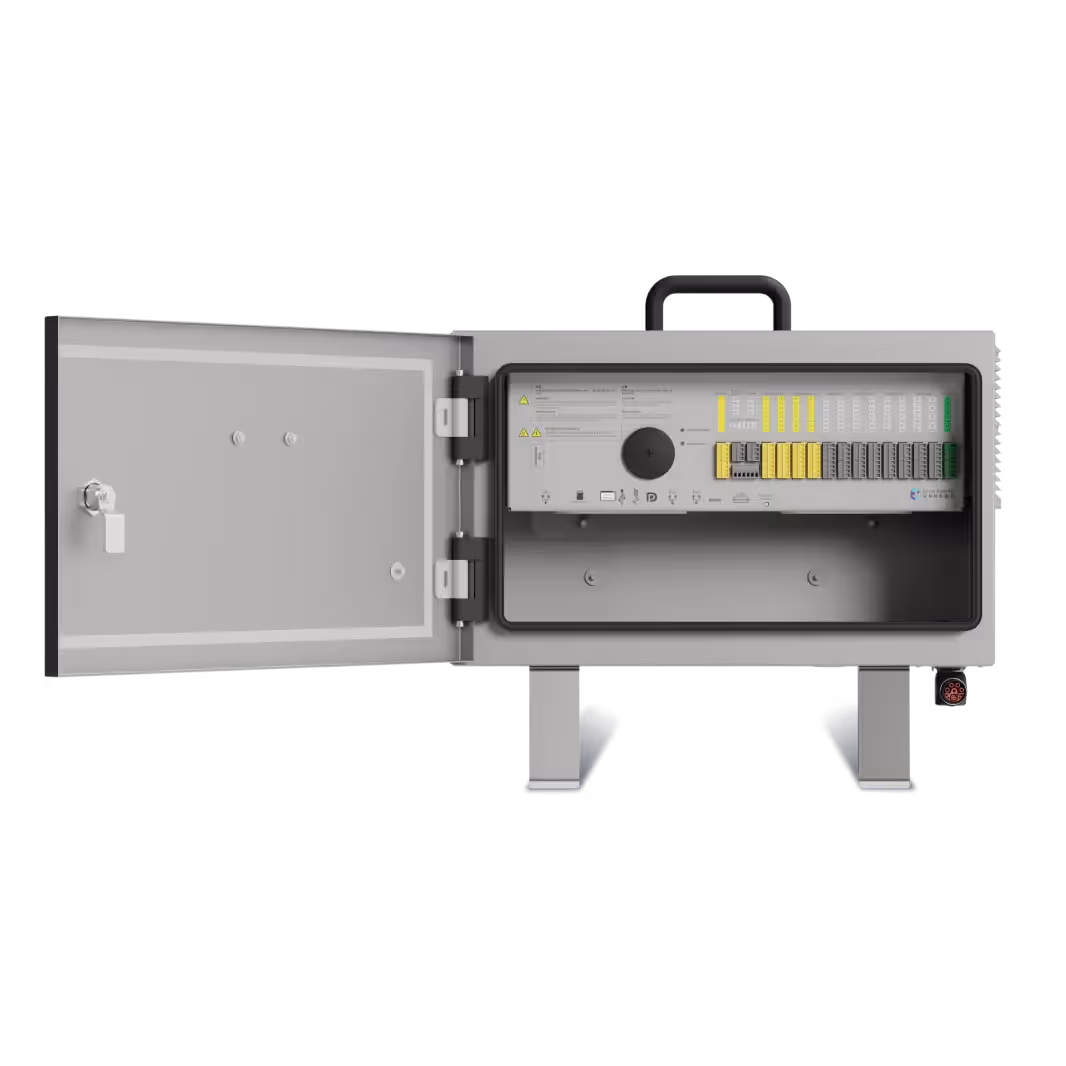

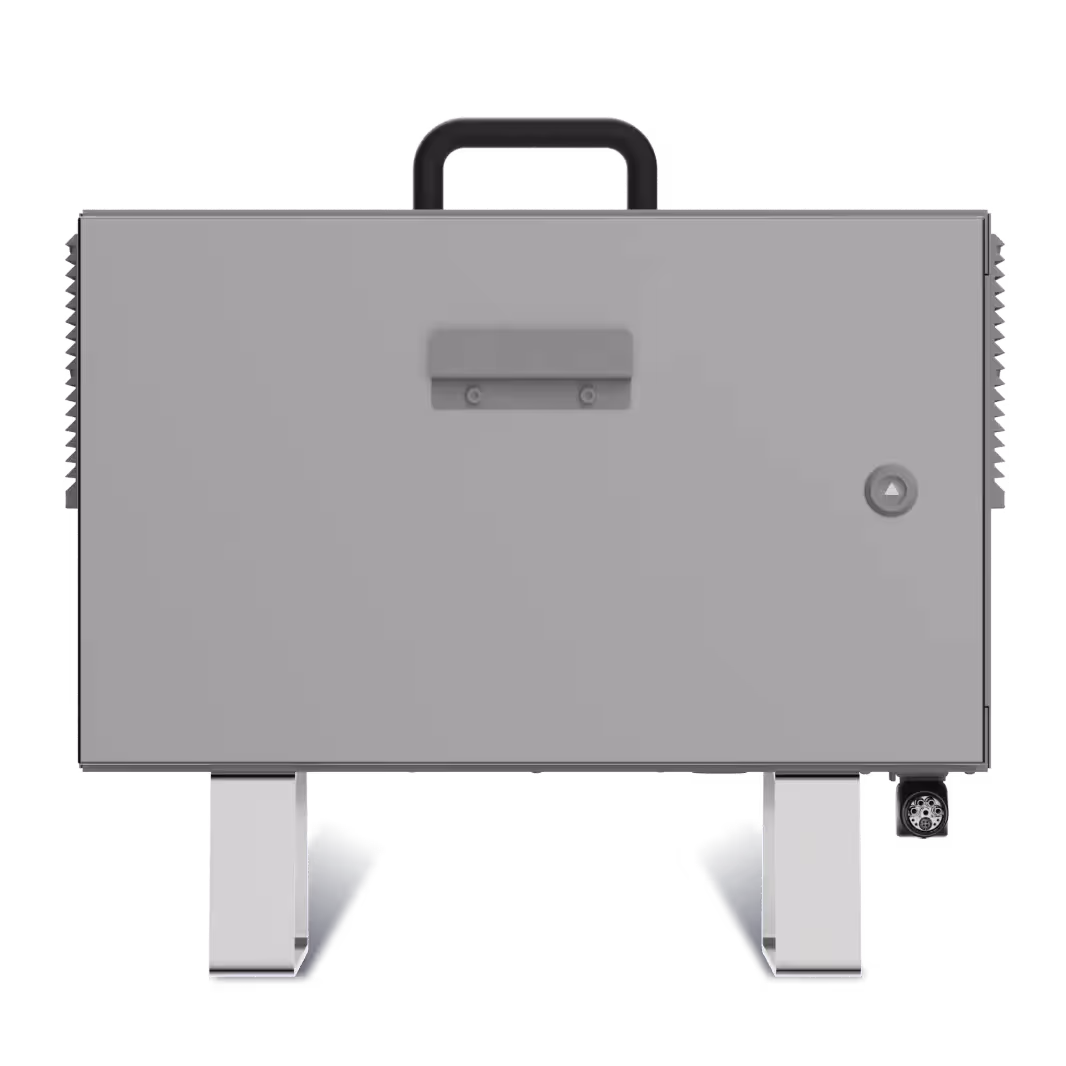

The compact (505 x 462 x 257mm) AC controller of the CS Series is the standard solution for managing the operation of the CS cobots
Greater opennes: 24 DI / 24 DO (8 config.), Ethernet/IP and Profinet slave with Modbus TCP/RTU interface

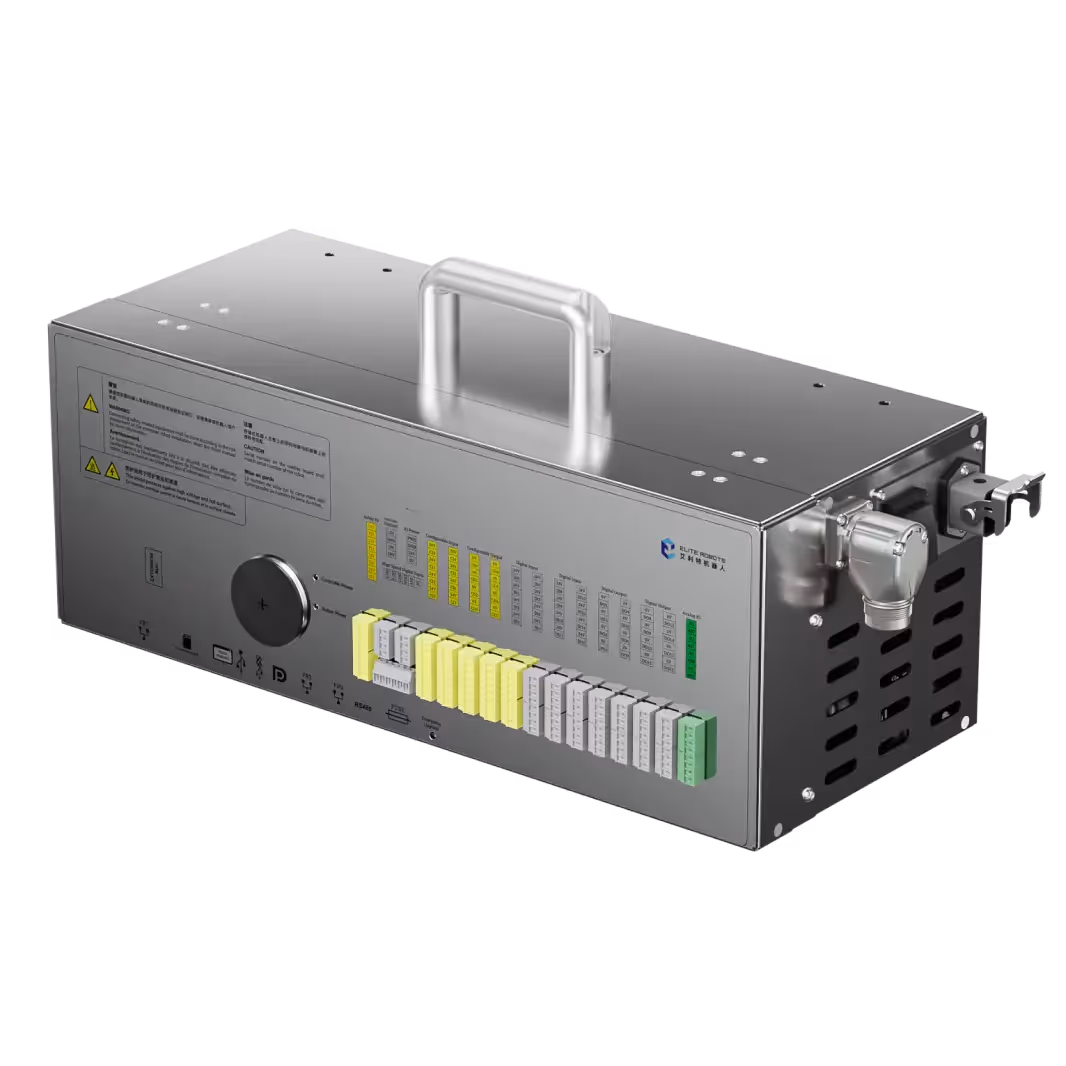

Optional OEM controller box (both AC and DC models available). Size: 495 x 200 x 170mm
Compare

A Quick Glance

Compare the main features of the CS Series collaborative robots to find the cobot that is right for you.

Select 2 or more cobots (up to 6)
test
test
Select one or more cobots
EC64
EC
3kg 6-Axis
Explore
Explore
Payload
Reach / radius
Accuracy
TCP speed
Footprint
CS63
3kg 6-Axis
Explore
Explore
6kg
914mm
Ø 150 mm
±0.03mm
±0.03mm
popular
CS66
3kg 6-Axis
Explore
Explore
6kg
914mm
Ø 150 mm
±0.03mm
±0.03mm
CS68
3kg 6-Axis
Explore
Explore
6kg
914mm
Ø 150 mm
±0.03mm
±0.03mm
new
CS612
3kg 6-Axis
Explore
Explore
6kg
914mm
Ø 150 mm
±0.03mm
±0.03mm
CS616
3kg 6-Axis
Explore
Explore
6kg
914mm
Ø 150 mm
±0.03mm
±0.03mm
CS618
3kg 6-Axis
Explore
Explore
6kg
914mm
Ø 150 mm
±0.03mm
±0.03mm
CS620
3kg 6-Axis
Explore
Explore
6kg
914mm
Ø 150 mm
±0.03mm
±0.03mm
CS625
3kg 6-Axis
Explore
Explore
6kg
914mm
Ø 150 mm
±0.03mm
±0.03mm
Productivity

CS Series in Action

Watch the power and flexibility of CS cobots, successfully deployed for a wide range of different tasks, from palletizing to machine management to material processing.

Boost your production line and your ROI too!

CS612 powered by OnRobot DPLOY for pick and pack and machine tending
CS620 palletizing demo with APR (Autonomous Pallet-handling robot)
CS612 CNC loading and unloading of metal parts with dual gripper
