DN300
Name Parameter
Net Weight/Payload50 KG | 80 KG
Dimensions 540×450×240 mm
ActuatorRoller Conveyor/Parking Stabilization System/Station Docking/Composite Robot
Navigation MethodLaser Navigation
Navigation
Positioning AccuracyReflectorless: ±10 mm; Reflective: ±5 mm
Path PlanningAutonomous Path Planning
Direction of TravelForward, Backward, Rotation
Maximum Speed1.6 m/s
Safety Protection360° LiDAR | Collision Sensors | Front/Rear Dual Emergency Stops | Four-color LED Strips
Battery Capacity48V/15Ah
Charging MethodManual/Automatic Charging
Spec Parameter
Payload 25kg
Radius 1500mm
Repeatability ±0.8mm
Axis 6
Max Pallet Size 1200 mm * 1000 mm
Max Stacking Height 2300mm
Weight428 kg
Spec Parameter
Payload 30kg
Radius 1522mm
Repeatability ±0.1mm
Axis 5
Max Pallet Size 1200 mm * 1000 mm
Max Stacking Height 2300mm
Weight 400 kg
Spec Parameter
Model CH-A143/85
Weight 20 kg
Dimensions 410 × 320 × 270 mm
Charging
Connector Height 143/85 ±10 mm
Input Voltage AC 220 V ±10% (16 A GB-standard plug)
Input Current <10 A
Frequency 50 Hz
Rated Voltage DC 48 V
Maximum
Voltage DC 58.4 V
Output Current Max 50 A
Number of
Output Channels 1 Channel
Ethernet Port Supported
Supported
Protocols Modbus TCP
Spec Parameter
Payload 25kg
Radius 1500mm
Repeatability ±0.8mm
Axis 6
Max Pallet Size 1200 mm * 1000 mm
Max Stacking Height 1600mm
Weight 380 kg
Spec Parameter
Payload 30kg
Radius 1522mm
Repeatability ±0.1mm
Axis 5
Max Pallet Size 1200 mm * 1000 mm
Max Stacking Height 1600mm
Weight 380 kg
Spec Parameter
Model CH-MS60/40
Weight 68 kg
Dimensions 842 × 600 × 441 mm
Compatible
Battery 60 Ah / 40 Ah
Input Voltage AC 220 V ±10% (Dual-channel 10 A GB-standard plug)
Input Current <10 A
Frequency 50 Hz
Rated Voltage DC 48 V
Maximum
Voltage DC 58.4 V
Output Current 25/30 A
Number of
Output Channels 2 Channel
Ethernet Port Supported
Supported
Protocols Modbus TCP
Spec Parameter
Temperature range 0~50℃
Peak Power Consumption 2~3.5kW
Power Source Single-phase 220VAC/110VAC 50~60Hz
Footprint 1400mm x 1700mm
Spec Parameter
Size 301mm x 232mm x 54mm
Screen size 12.1"
Resolution 1280 x 800 pixels
IP rating IP54
Weight1.7 kg
Cable length5.5 m
Temperature range0~50℃
Relative humidity5%–95% (non-condensing)
MaterialAluminum, Plastic, Rubber
Input methodCapacitive touch-screen
Spec Parameter
Size 301 mm x 232 mm x 105 mm
Screen size 12.1"
Resolution 1280 x 800 pixels
IP rating IP54
Weight 1.8 kg
Cable length 5.5 m
Temperature range0~50℃
Relative humidity5%–95% (non-condensing)
Material Aluminum, Plastic, Rubber
Input methodCapacitive full touch-screen, 3-mode enable key, jogging-keys, function keys

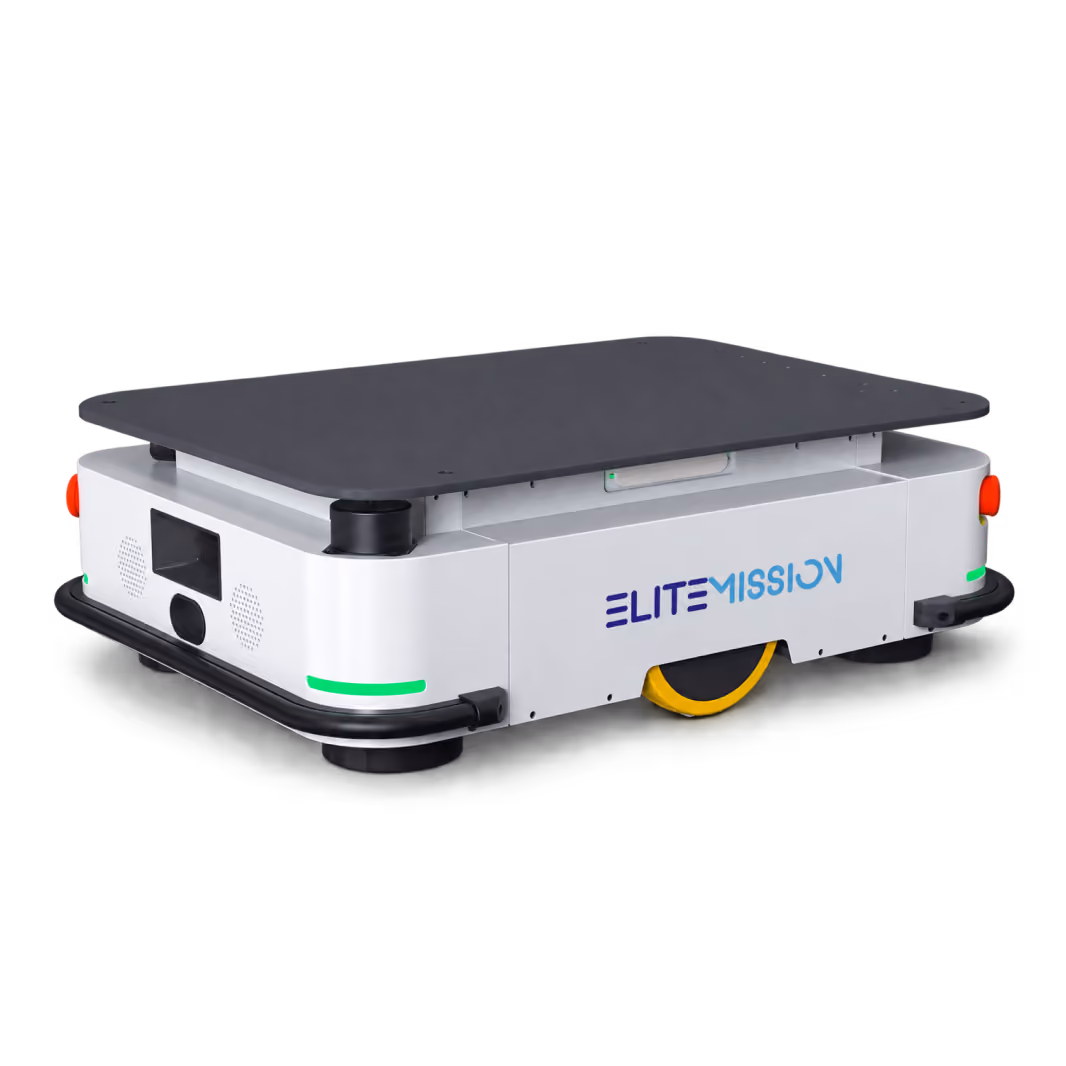

DN300
DN300 is a compact 300 kg-payload differential AMR chassis designed for efficient light- to medium-duty material handling.
Smart Charging Station
Pair DN300 with a compatible smart charging station for automatic charging and efficient fleet operation.
M-ATCS Autonomous Transportation Control System
Enable unified AGV/AMR scheduling, smart-device integration, cloud deployment, and rapid integration with existing IT systems.
Docking & Conveyor Modules
Configure MN500 with roller conveyor, station docking, and parking stabilization options to support different material-handling workflows.
