CS612

new

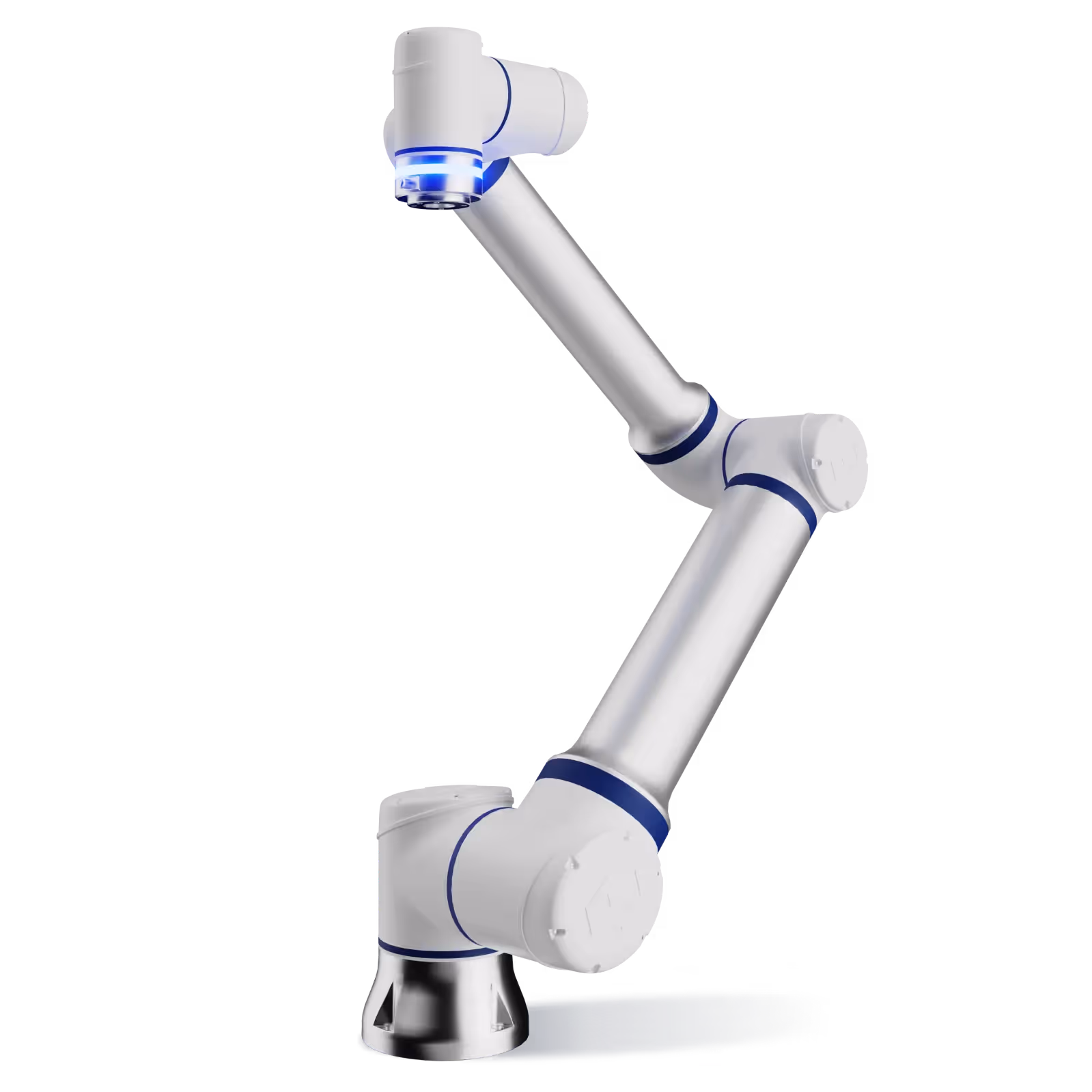

Featuring both a long reach and a high payload, CS612 robotic arm strikes the perfect balance between flexibility and power, and opens the door to an infinite range of applications, from machine tending to mobility solutions with AGVs.
Main Technical Features:
12kg
load
1304mm
reach
±0.05mm
acc.
1.5 m/s
TCP*
*Typ speed
Ø 190 mm
ftpr.

IP65/68

Get quote
Get quote
Get quote
Get quote
Scroll down
Scroll down
Main features and characteristics

Specification

Spec Parameter

Payload 12kg

Radius 1304mm

Accuracy ±0.05mm

Axis 6

IP rating IP65 (optional IP68)

Temperature range -10~50℃

Relative humidity <90% (non-condensing)

Typical power usage 435w

Tool I/O connector M8, 8pin

Tool I/O ports 4 config. DI, 4 config. DO; 1 AI, 1 AO

Tool I/O power supply 0 / 12V / 24V, 3A, 2A, 1A

Tool I/O communication RS485, Modbus RTU

Footprint Ø 190 mm

Weight 34 kg

Joint Range Speed

Joint 1 ±360° 120°/s

Joint 2 ±360° 120°/s

Joint 3 ±360° 150°/s

Joint 4 ±360° 180°/s

Joint 5 ±360° 180°/s

Joint 6 ±360° 180°/s

Typical TCP Speed 1.5 m/s

Name Parameter

Type AC

I/O ports 24 DI, 24 DO (8 safety config. DI/DO); 2 AI, 2 AO; 4 High-Speed DI

I/O power supply 24V/3A (internal), 6A (external)

Communication RS485, Ethernet TCP/IP, Modbus TCP/RTU, Ethernet/IP slave, Profinet slave

Size 505mm x 257mm x 462mm

IP rating IP44

Weight 14 kg

Power source 100-240 VAC, 50-60 Hz

Temperature range 0~50℃

Relative humidity 5%–95% (non-condensing)

Material Aluminum, Steel

Spec Parameter

Type DC / AC

I/O ports 24 DI, 24 DO (8 safety config. DI/DO); 2 AI, 2 AO; 4 High-Speed DI

I/O power supply 24V/3A (internal), 6A (external)

Communication RS485, Ethernet TCP/IP, Modbus TCP/RTU, Ethernet/IP slave, Profinet slave

Size 495mm x 200mm x 227mm

IP rating IP40

Weight 7 kg

Power source 19-72VDC / 100-240VAC, 50-60Hz

Temperature range 0~50℃

Relative humidity 5%–95% (non-condensing)

Material Aluminum, Steel

Spec Parameter

Size 301mm x 232mm x 54mm

Screen size 12.1"

Resolution 1280 x 800 pixels

IP rating IP54

Weight 1.7 kg

Cable length 5.5 m

Temperature range 0~50℃

Relative humidity 5%–95% (non-condensing)

Material Aluminum, plastic

Input method Capacitive full touch-screen

Spec Parameter

Size 301mm x 232mm x 105mm

Screen size 12.1"

Resolution 1280 x 800 pixels

IP rating IP54

Weight 1.8 kg

Cable length 5.5 m

Temperature range 0~50℃

Relative humidity 5%–95% (non-condensing)

Material Aluminum, plastic

Input method Capacitive full touch-screen, 3-mode enable key, jogging-keys, function keys

What’s in the box

Unboxing

CS612

Elite Robots CS612 robotic arm (34kg weight; 1546mm total cobot length; Ø190mm footprint). Standard IP65, upgradeable to IP68. Includes standard 5.5m cable (optional cable lengths are also available: 1.5m; 3m; 8m; 10m).

No items found.

Controller

By default, the cobot is delivered with the standard compact (505 x 462 x 257mm) and lightweight (14kg) AC controller to manage all cobot operations. The AC/DC OEM controller (495 x 200 x 170mm; 7.1 kg) is available as an option.

The CS Series standard AC controller

The controller integrates a holder to optionally attach the TP

The CS Series OEM DC/AC controller

No items found.

Teach Pendant

The cobot standard order includes the regular, IP54-rated ERP400 teach pendant, with a 12.1" full-touch screen and a 5.5m cable. The ERP400S teach pendant with 3-mode enable key for enhanced safety is available optional.

The CS Series standard teach pendant ERP400

The optional ERP400S teach pendant with 3-mode enable key for enhanced safety

ERP400S also integrates physical jogging and adjustment keys

No items found.
No items found.
Docs

Technical Documents

Download all our documents or select the relevant one from the drop-down menu below and get the most out of our products.

No items found.
Get quote
Get quote
Get quote
Get quote
0
ServiceManual_CS612
PDF
7
 Mb
Download
Download
0

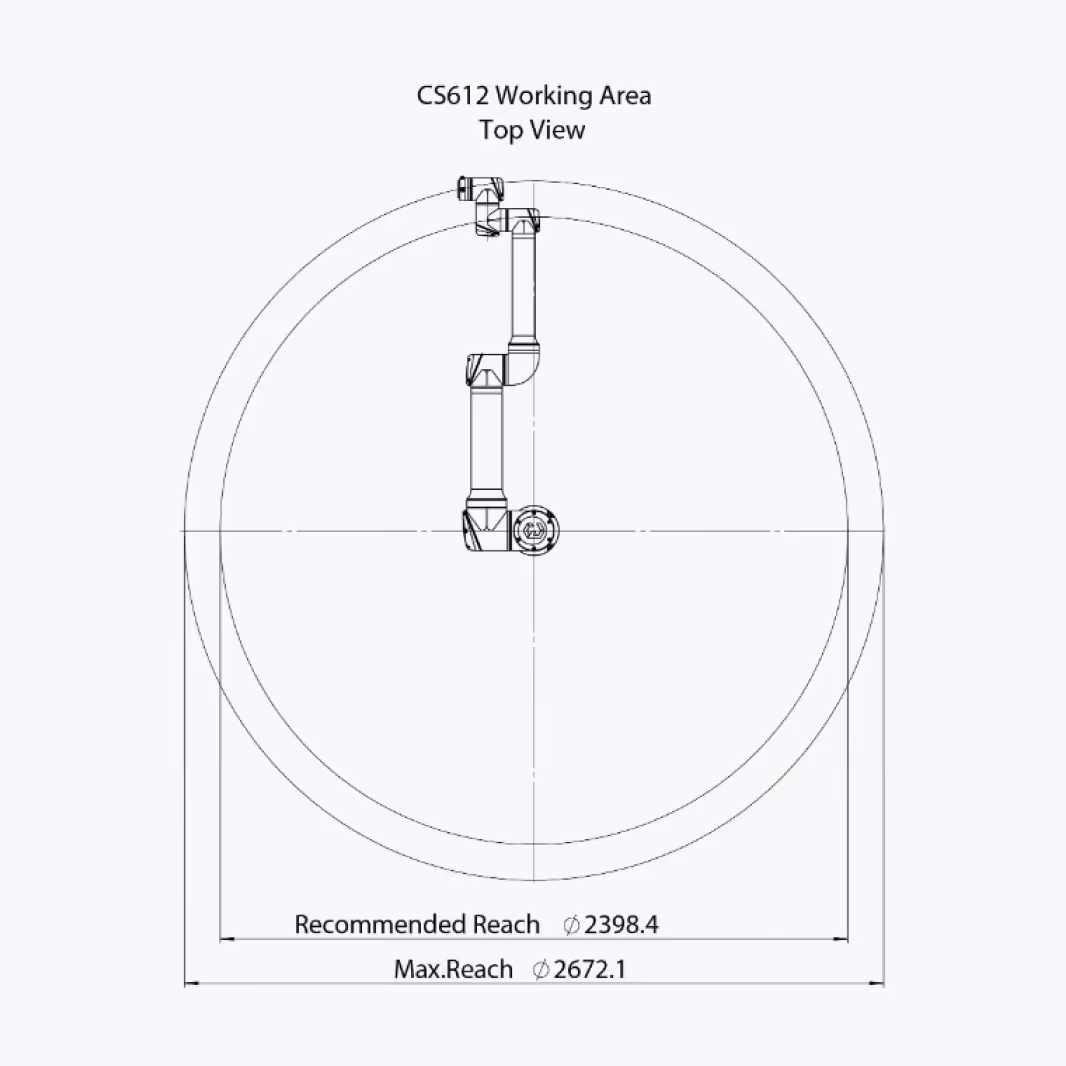

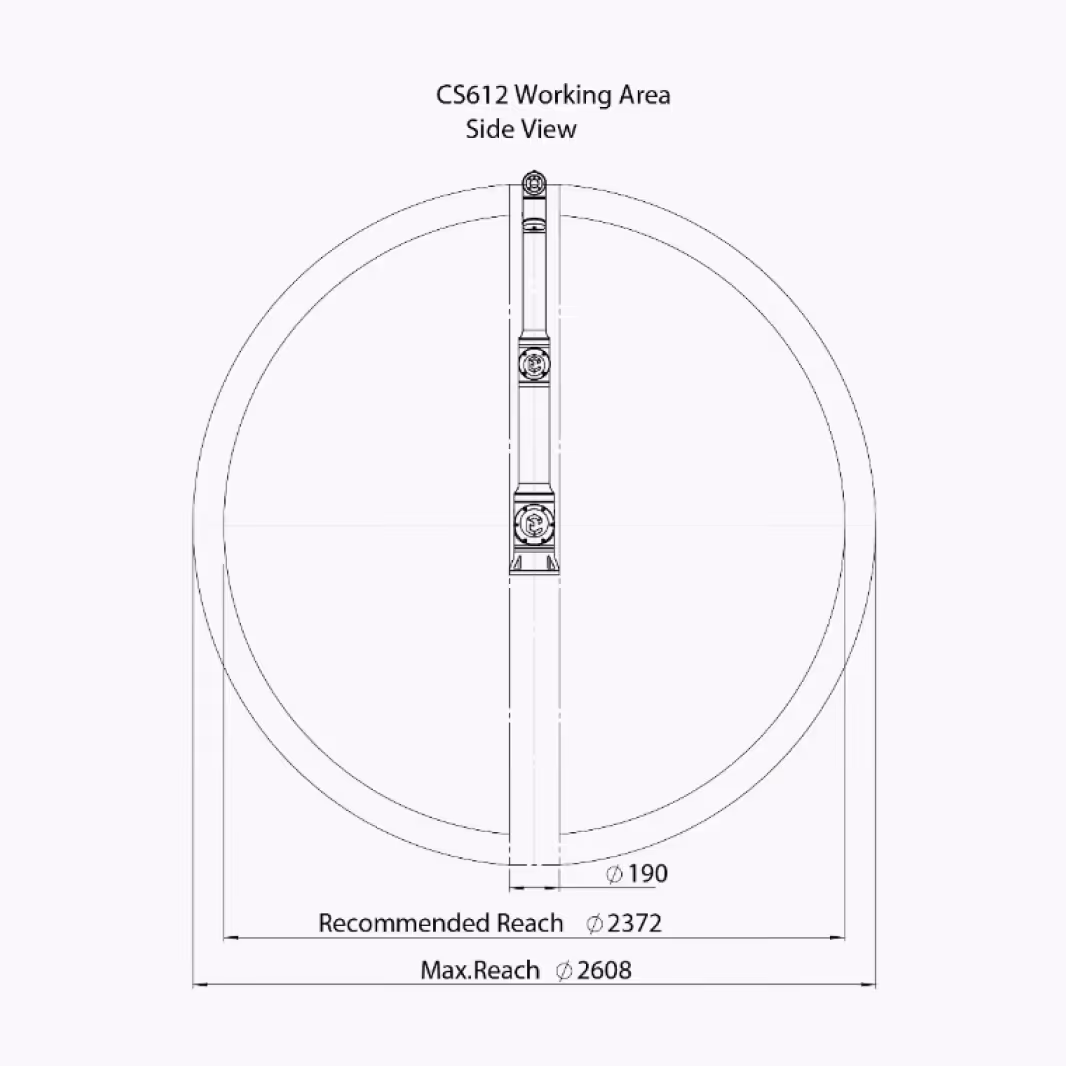

Drawing_working-range_CS612
PDF
0.3
 Mb
Download
Download
0
Drawing_working-range_CS616
PDF
0.3
 Mb
Download
Download
0

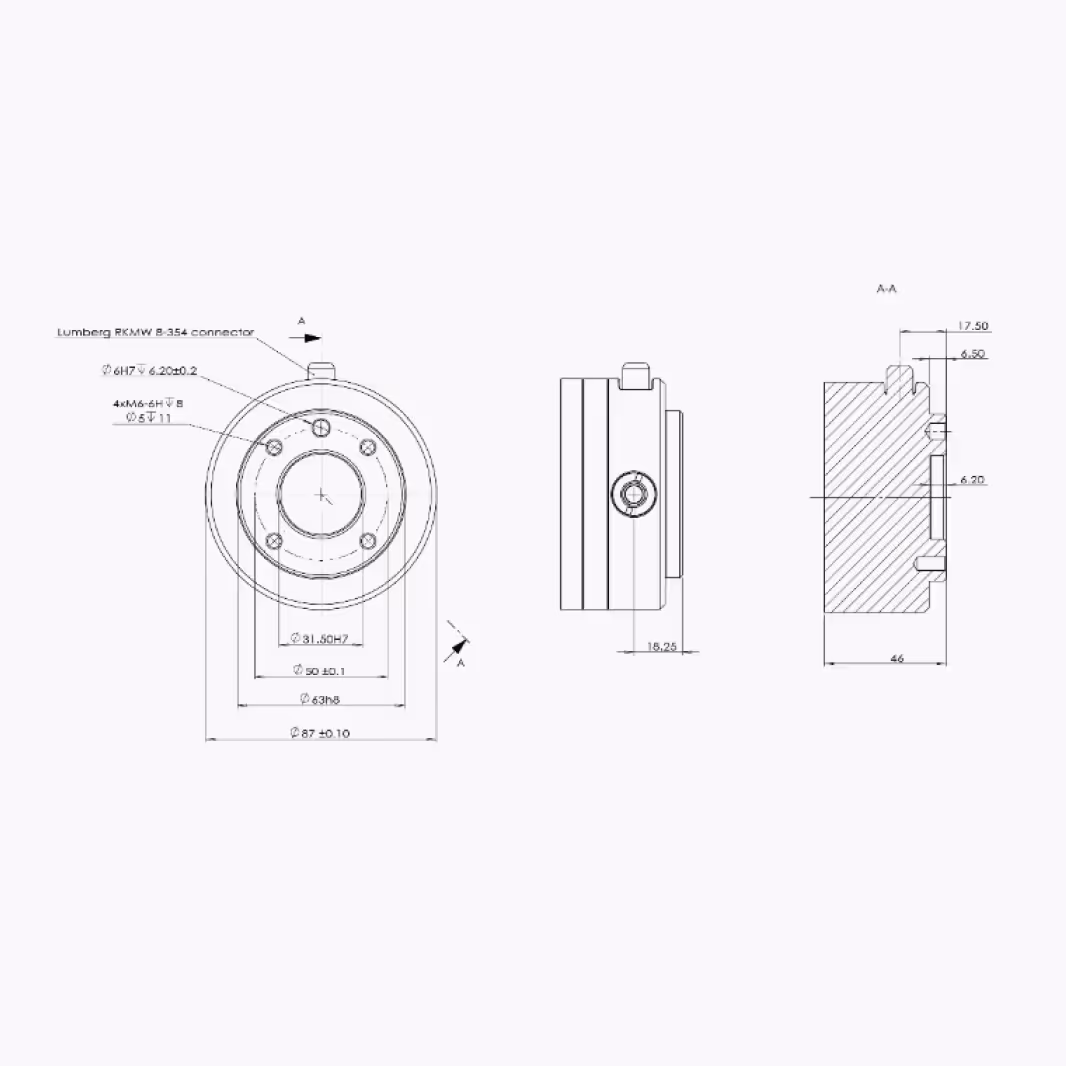

Drawing_robot-flange_CS612
PDF
0.2
 Mb
Download
Download
0

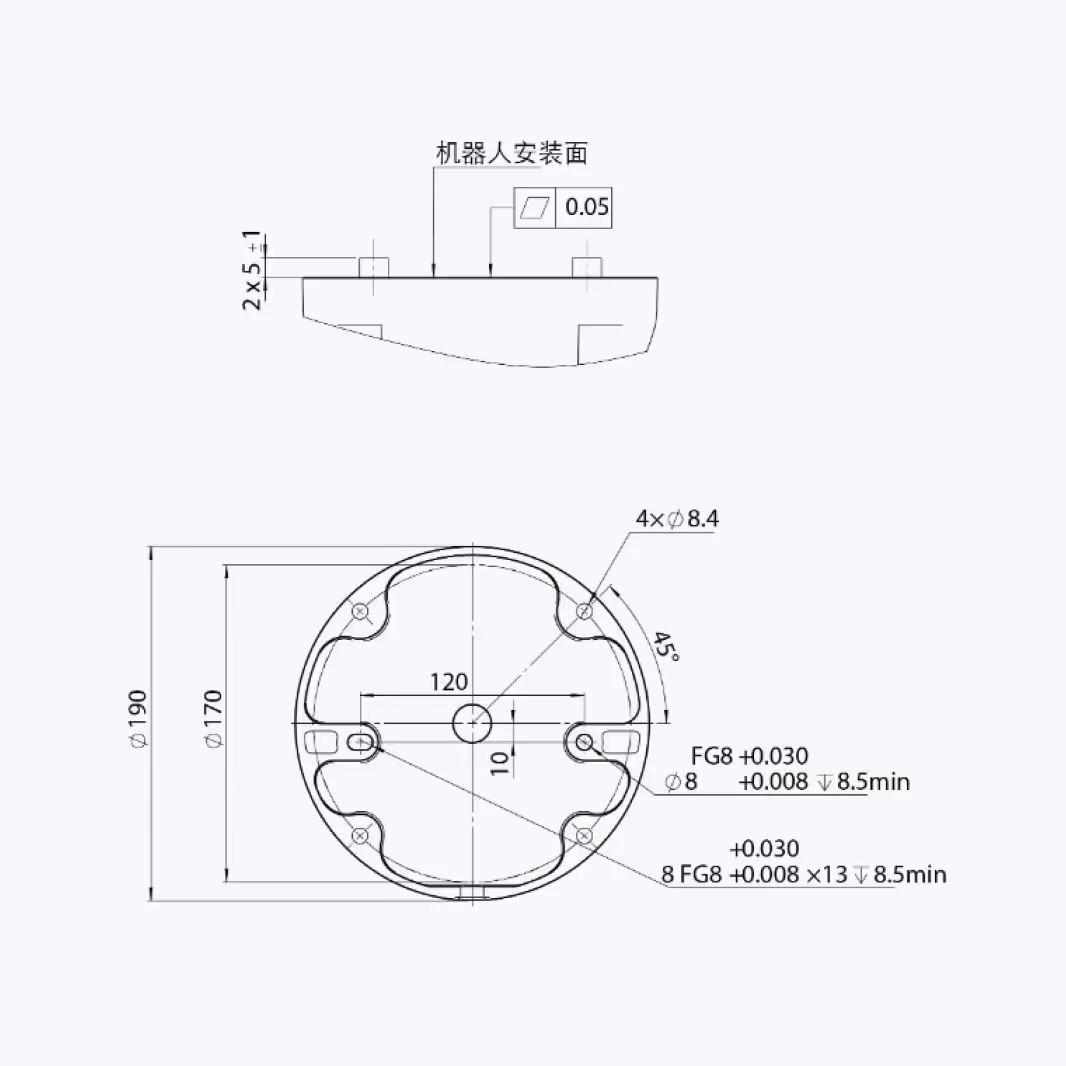

Drawing_base-installation_CS612
PDF
0.2
 Mb
Download
Download
0
UserManual_CS612
PDF
28
 Mb
Download
Download
0
Datasheet_CS612
PDF
1
 Mb
Download
Download
Show more ↓
Show less↑
Show more ↓
Show less↑
Compare

A Quick Glance

Compare the main features of this line of collaborative robots and choose the cobot that is right for you.

Select 2 or more cobots (up to 6)
test
CS612
EC
3kg 6-Axis
Explore
Explore
Payload
Reach / radius
Accuracy
TCP speed
Footprint
CS63
3kg 6-Axis
Explore
Explore
3kg
624mm
±0.02mm
1.5 m/s
Ø 128 mm
popular
CS66
3kg 6-Axis
Explore
Explore
6kg
914mm
±0.03mm
1.5 m/s
Ø 150 mm
new
CS612
3kg 6-Axis
Explore
Explore
12kg
1304mm
±0.05mm
1.5 m/s
Ø 190 mm
CS620
3kg 6-Axis
Explore
Explore
20kg
1800mm
±0.1mm
2.0 m/s
Ø 240 mm
CS625
3kg 6-Axis
Explore
Explore
25kg
1500mm
±0.08mm
2.0 m/s
Ø 240 mm
cobots Applications

Popular applications

for

CS612

WATCH THE COBOT AT WORK

CS612 Robotic Arm in Action

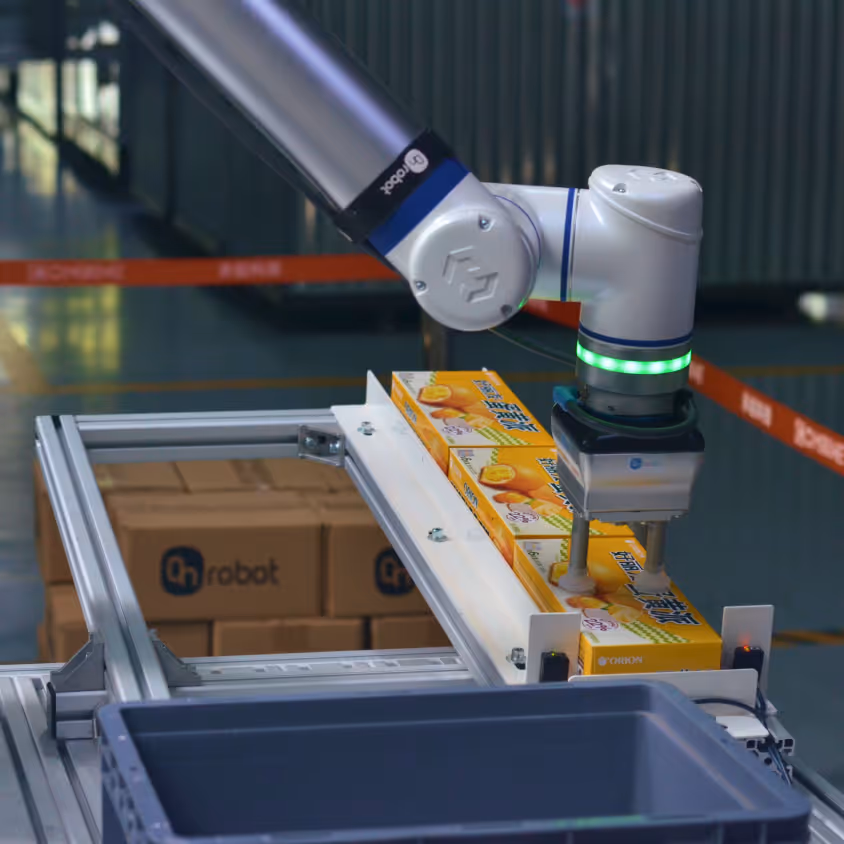

Discover the perfect blend of power and flexibility in some of the many areas where the CS612 robotic arm makes a difference in performance and returns.

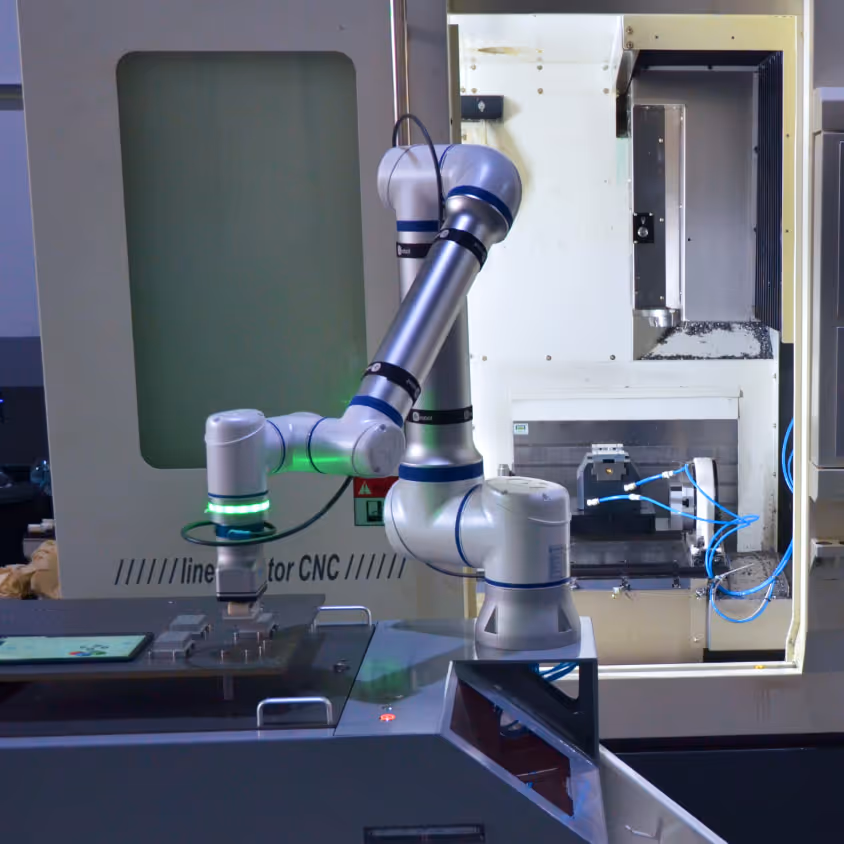

CNC machine tending with dual gripper
