CS620 | 20KG 6-Axis Collaborative Robot

Payload
20kg
Radius
1800mm
Accuracy
±0.1 mm
Back to Series

CS Series Collaborative Robots

CS620

With a 20 kg payload, a dual connector with a 5A output source that can handle multiple effectors simultaneously, and a leading 1800 mm radius, CS620 can flawlessly perform the most demanding tasks and bring peace of mind to your workshop.

Main Technical Features

6 Axis
1800mm
IP65 (IP68 upgradable)
±0.1 mm
625w
3.9 m/s

Technical Data

Immerse yourself in the cobot and explore all its features and functionality

Robotic Arm
Joints Movement
Controller
Teach Pendant
  • Axis
    6
  • Weight
    60kg
  • Payload
    20kg

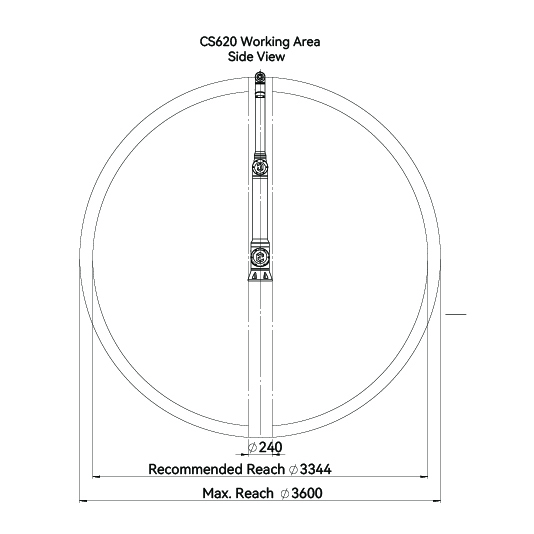

  • Radius
    1800mm
  • Footprint
    Ø 240 mm
  • Repeatability
    ±0.1 mm
  • IP Rating
    IP65 (IP68 upgradable)
  • Temperature Range
    0-50°C
  • Connector Type
    T1: M8, 8pin | T2: Ø 12.8mm, 4pin
  • Power Consumption
    625w
  • Tool I/O
    4 x config. DIO, 1 x AI, 1 x AO, 1 x RS485
  • Tool I/O Power
    T1: 12V / 24V, 3A, 2A, 1A | T2: 24 V, 5A"
  • Programming
    Graphic programming, offline programming, Python-script
  • Cable Length
    5.5m
  • Size
    505mm x 432mm x 257mm (WxHxL)
  • Weight
    14kg
  • Material
    Aluminum, Steel
  • IP Rating
    IP54
  • Tool I/O
    24 x DI (8 x DI Configurable), 24 x DO (8 x DO Configurable), 2 x AI, 2 x AO
  • Tool I/O Power
    24V, 3A, 6A
  • Communication
    3 x Ethernet ports, 1 x RS485, TCP/IP, MODBUS TCP/RTU, EtherNet/IP, Profinet
  • Power Supply
    100-240 VAC, 50-60 Hz
  • Range
    Speed
  • Joint 1
    ±360°
    125°/s
  • Joint 2
    ±360°
    125°/s
  • Joint 3
    ±360°
    150°/s
  • Joint 4
    ±360°
    210°/s
  • Joint 5
    ±360°
    210°/s
  • Joint 6
    ±360°
    210°/s
  • TCP Speed (max/typical)
    3.9 m/s
  • Screen Display Size
    12.1"
  • Input Method
    Capacitive touch-screen
  • Resolution
    1280 x 800 pixels
  • Material
    Aluminum, Plastic
  • Weight
    2.1 kg
  • IP Rating
    IP54
  • Cable Length
    5.5m

A Quick Glance

Find out if this cobot is the best fit for your needs by quickly comparing it with other members of the range.

MODEL PAYLOAD REACH FOOTPRINT ACCURACY
CS63 Cobot CS63 16.5kg 624mm ∅128mm ±0.02mm find more
CS66 Cobot CS66 22kg 914mm ∅ 150 mm ±0.03mm find more
CS612 Cobot CS612 37kg 1304mm Ø 190 mm ±0.05mm find more
CS620 60kg 1800mm Ø 240 mm ±0.1 mm
CS625 60kg 1500mm Ø 240 mm ±0.08 mm find more

Watch CS620 in Action

With a 20 kg payload, an 1800 mm reach, and an industry-leading speed of up to 3.9 m/s, CS620 is the perfect choice for effectively performing medium-to-high payload tasks such as handling heavy parts, palletizing or welding.

Applications
