Welding Solution

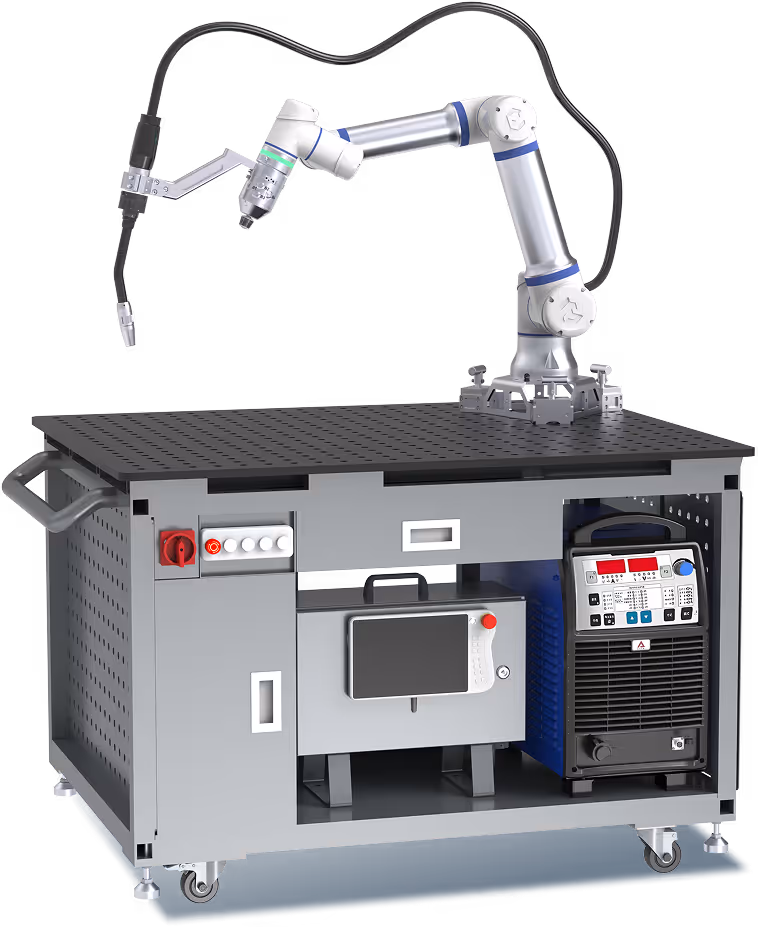

Collaborative Welder with Copilot
Optional Copilot
The Elite Robots proprietary piloting tool enables easy programming of the weld trajectory in any direction (x-y-z)
Modular design
Modular design Interchangeable welding machine and torch. Supports multi-station and other configuration types.
Flexible
Exceptional weight-to power ratio. Easy to move from one line to another one and redeploy. Magnetic base for multi-angle installation.
User friendly
Easy to program thanksto the embedded proprietary welding application wizard. Supports additional expansion.
Interchangeable equipment
Supports 350A/500A machines; air/water-cooled torches
Key Components
• Max pull-off force per magnet: 180 kgf
• Shear force per magnet: 36 kgf
Optional Copilot
The optional integrated piloting tool allows for teach pendant-free programming via the proprietary welding application plug-in. It integrates six configurable function keys for program creation, new points generation, wire feeding, gas delivery, and program initialization. Enjoy rapid deployment and redeployment of your welding tasks!
Multiple Configurations
The modular designs of the CW Series supports various configurations depending on the user needs: dual/triple station, table-mounting, top-down welding and more. This gives the user extreme flexibility, allowing them to integrate the solution into any production line without disruption and to respond to different welding requirements.
Automatic programming
Integrated touch-sensing function (pictured) for auto-adjustment of the weld trajectory. Easy multi-layer configuration for automatic generation of each subsequent step based on the programmed offset of the first step, and adaptive computing of optimized multi-layer trajectories.
4 weaving modes: C-weaving, Elliptical weaving, Z-weaving, and T-weaving.
350/500A output, air/water cooling
The integration of Elite Robots’ proprietary hardware and software with equipment from leading welding companies (350A/500A welding machines; air/water-cooled welding torches) creates multiple combinations to suit different needs. Supports equipment from all major brands in the welding industry.
Spec Parameter
Payload 6 kg
Radius 914 mm
Repeatability±0.03mm
Joints rotation (J1-J6) ±360°
Max TCP Speed2.8 m/s
IP ratingIP65 (optional IP68)
Temperature range-10~50℃
Typical power usage 250w
Mounting Table-mounting / Top-down welding
Tool I/O ports & supply 1 AI, 1 AO | 0 / 12V / 24V; 3A / 2A / 1A | RS485
Footprint150 mm
Self-weight 20 kg
Cable length5.5 m
ProgrammingPython-script, free-drag / offline / remote programming
Spec Parameter
Payload 12 kg
Radius 1304 mm
Repeatability±0.05mm
Joints rotation (J1-J6)±360°
Max TCP Speed3.4 m/s
IP ratingIP65 (optional IP68)
Temperature range-10~50℃
Typical power usage 435w
Mounting Table-mounting / Top-down welding
Tool I/O ports & supply 1 AI, 1 AO | 0 / 12V / 24V; 3A / 2A / 1A | RS485
Footprint190 mm
Self-weight34 kg
Cable length5.5 m
ProgrammingPython-script, free-drag / offline / remote programming
Spec Parameter
Payload 20 kg
Radius 1800 mm
Repeatability±0.1mm
Joints rotation (J1-J6)±360°
Max TCP Speed3.9 m/s
IP ratingIP65 (optional IP68)
Temperature range-10~50℃
Typical power usage 625w
Mounting Table-mounting / Top-down welding
Tool I/O ports & supply 1 AI, 1 AO | 0 / 12V / 24V; 3A / 2A / 1A | RS485
Footprint240 mm
Self-weight60 kg
Cable length5.5 m
ProgrammingPython-script, free-drag / offline / remote programming
Spec Parameter
Duty cycle 100% @ 500A
Rated current range 30-500A
Set voltage range 15.5–39V
Main features DC, low spatter, critical pulse
Typical welding plateCarbon steel, ordinary low-alloysteel, galvanized sheet, stainless steel 2.5mm and above
Recommended forConstruction, machinery, steel,automotive and other vehicles,containers, energy industry.
Spec Parameter
Duty cycle 100% @ 500A
Rated current range 30-500A
Set voltage range 12–45V
Main featuresDC, short arc pulse, constantpenetration
Typical welding plateCarbon steel, ordinary low-alloysteel, galvanized sheet, stainless steel 2.5mm and above
Recommended forConstruction, machinery, steel.
Spec Parameter
Duty cycle 100%
Rated current range 60-350A
Set voltage range 17-31.5V
Main featuresUltra-low spatter, ultra-short arcpulse, constant penetration
Typical welding plateCarbon steel, ordinary low-alloysteel, galvanized sheet, stainless steel 0.7-8mm
Recommended forConstruction, machinery, steel,auto parts, and more.
Spec Parameter
Duty cycle 100%
Rated current range 30-500A
Set voltage range 15.5-39V
Main featuresFast pulse
Typical welding plateCarbon steel, ordinary low-alloysteel, galvanized sheet 8-15mm,stainless steel 8mm and above
Recommended forShipbuilding, wind turbineindustry, and more.
Spec Parameter
Rated current 500A
Duty cycle100%
Applicable Welding Wire0.8-1.6mm
Cooling method Water-cooled
Supports Copilot✓
Anti-collision sensor-
Compatible welding machinesMEGMEET DEX2 500MPR / Aksen Nova 500AOTAI NBC 500RP PLUS
Spec Parameter
Rated current 350A
Duty cycle100%
Applicable Welding Wire0.8-1.6mm
Cooling method Air-cooled
Supports Copilot✓
Anti-collision sensor-
Compatible welding machinesAOTAI MAG350PRO PLUS
Spec Parameter
Rated current 550A (w/ CO2); 500A (w/ mixed gas)
Duty cycle100%
Applicable Welding Wire0.8-1.6mm
Cooling method Water-cooled
Supports Copilot-
Anti-collision sensor✓
Compatible welding machinesMEGMEET DEX2 500MPR / Aksen Nova 500AOTAI NBC 500RP PLUS
Spec Parameter
Rated current 550A (w/ CO2); 350A (w/ mixed gas)
Duty cycle100%
Applicable Welding Wire0.8-1.6mm
Cooling method Air-cooled
Supports Copilot-
Anti-collision sensor✓
Compatible welding machinesMEGMEET DEX2 500MPR / Aksen Nova 500AOTAI NBC 500RP PLUS
Spec Parameter
Functions Wire cutting, lubricating oil spraying
Spec Parameter
Functions Wire cutting, lubricating oil spraying
High Compatibility
